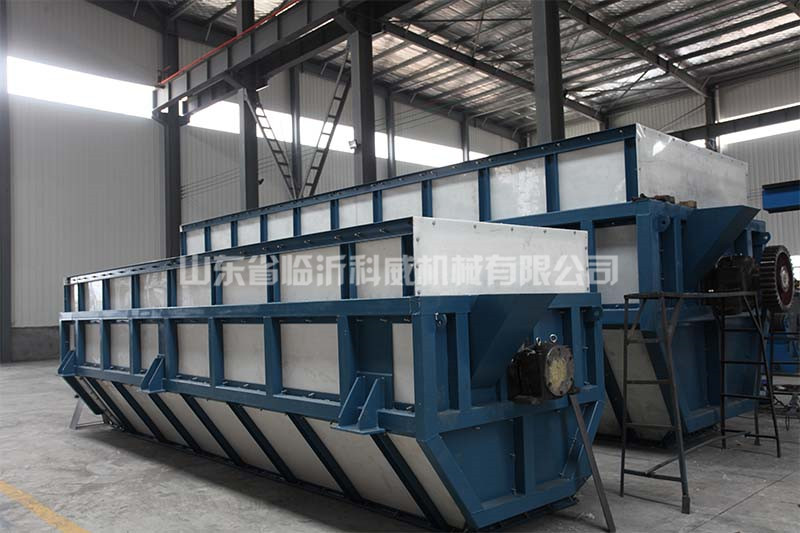

產品簡介
該機從進料端到出料端采用不同目數的篩網,實現了復混肥的分級篩選,該機具有生產能力大、篩選效果好、操作方便等特點。該機網籠分圓形和錐形兩種形式。用于物料的分級篩選。
- 1
- 2
- 3
- 4
技術參數
型號 |
處理能力/t |
電機功率/kw |
轉速r/min |
篩網面積m2 |
Φ1.2×2m |
2-5 |
3 |
20 |
7.536 |
Φ1.2×3m |
2-5 |
3 |
20 |
11.304 |
Φ1.2×4m |
2-5 |
3 |
20 |
15.072 |
Φ1.4×3m |
3-6 |
3 |
18 |
13.188 |
Φ1.4×4m |
3-8 |
5.5 |
18 |
17.584 |
Φ1.4×6m |
5-8 |
4 |
18 |
20.096 |
Φ1.5×3m |
5-8 |
4 |
18 |
14.13 |
Φ1.5×4m |
6-10 |
5.5 |
18 |
18.84 |
Φ1.5×5m |
6-10 |
7.5 |
18 |
23.55 |
Φ1.5×6m |
8-10 |
11 |
18 |
28.26 |
Φ1.6×4m |
8-12 |
5.5 |
17 |
20.096 |
Φ1.6×5m |
10-15 |
7.5 |
17 |
25.12 |
Φ1.6×6m |
10-15 |
11 |
17 |
30.144 |
Φ1.8×4m |
10-12 |
7.5 |
16 |
22.608 |
Φ1.8×5m |
12-15 |
11 |
16 |
28.26 |
Φ1.8×6m |
15-20 |
15 |
16 |
33.912 |
Φ1.8×7m |
15-20 |
18.5 |
16 |
39.564 |
Φ2.0×4m |
15-18 |
11 |
16 |
25.12 |
Φ2.0×5m |
18-20 |
15 |
16 |
31.4 |
Φ2.0×6m |
20-25 |
18.5 |
16 |
37.68 |
Φ2.0×7m |
20-25 |
22 |
16 |
43.96 |
Φ2.0×8m |
25-30 |
22 |
16 |
50.24 |
Φ2.0×10m |
25-30 |
30 |
16 |
62.8 |
Φ2.2×5m |
20-25 |
18.5 |
15 |
34.54 |
Φ2.2×6m |
25-30 |
22 |
15 |
41.448 |
Φ2.2×7m |
25-30 |
22 |
15 |
48.356 |
Φ2.2×8m |
30-40 |
30 |
15 |
55.264 |
Φ2.2×10m |
30-40 |
37 |
15 |
69.08 |
Φ2.4×5m |
25-30 |
18.5 |
14.5 |
37.68 |
Φ2.4×6m |
30-40 |
22 |
14.5 |
45.216 |
Φ2.4×7m |
30-40 |
22 |
14.5 |
52.752 |
Φ2.4×8m |
40-50 |
30 |
14.5 |
60.288 |
Φ2.6×6m |
40-50 |
30 |
13 |
48.984
|
Φ2.6×8m |
50-60 |
37 |
13 |
65.312 |
